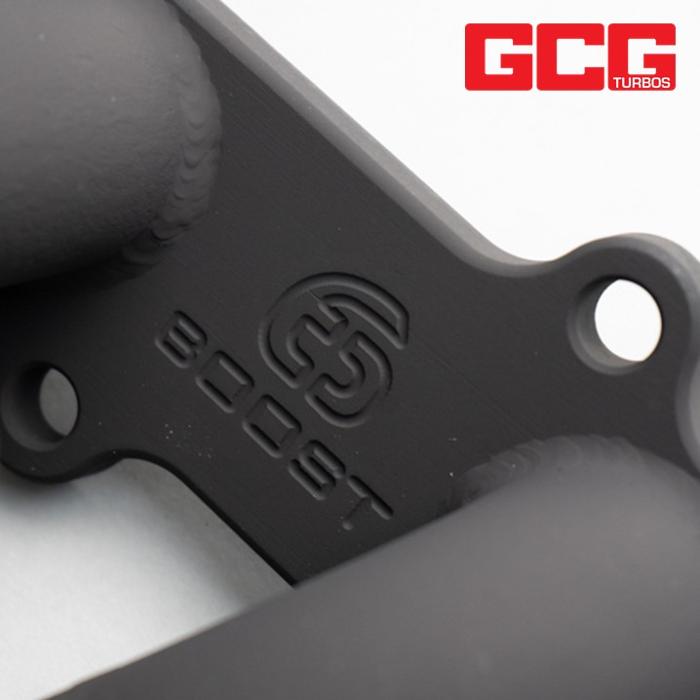

6Boost High Mount Manifold BARRA GTX35 VB Twin Entry Single Wastegate

6Boost High Mount Manifold to suit Ford XR6 Barra 4.0T

This manifold is manufactured to the following specifications:

• V-Band Single Entry Turbine Inlet Flange (Suitable for genuine Garrett GT30R > GTX35R / GTX3584R)
• 1 x Wastegate Provision for a Turbosmart 50mm ProGate GEN5 Wastegate

A larger wastegate can be used, as the manifold is supplied with a short wastegate starter pipe, designed to allow the fabricator to choose the size of the wastegate pipe, and the position the wastegate sits in. This is also why the manifolds ,do not , have a wastegate flange welded to them.

Features:

• Steampipe Construction, with Lifetime Warranty against cracking
• Ideal Wastegate Port Positioning
• Equal Length Runners
• Internal Merge Collector to take full advantage of engine exhaust gas flow
• Supplied with Manifold to Cylinder Head Studs & T4 Gasket
• Fits 99% of Engine Converted Vehicles
• Matt Black high temperature painted finish

Manufacturing Time:

Made to Order allow up to 30 Business Days from Order
